Harley Oil Change 101:
Keep Your Engine Alive & Ride With Confidence

Author: Glenn Cogan, Route 101 Motorsports
Date: May 26, 2025

Changing your oil isn’t rocket science — but screw it up, and your engine will let you know. This guide breaks it down the Route 101 way: fast, simple, and done right. From oil types to torque specs, we’ve got you.

Why Oil Changes Matter (More Than You Think)

When most riders hear “oil change,” they think engine oil and a filter. But on many Harley-Davidson motorcycles, that’s only part of the story. Your Harley has three separate lubrication systems—the engine, primary, and transmission—each protecting different components and working under different demands. That’s why a complete Harley service is commonly called a 3-hole oil change. Taking care of all three isn’t just about fresh oil; it’s about protecting the engine, keeping the clutch and primary drive working properly, helping the transmission shift smoothly, and giving the entire drivetrain the protection it needs for the miles ahead.

One Oil in All Three Holes? Here’s Why We Don’t Do It That Way.

Harley-Davidson allows certain approved lubricants to be used in more than one of these systems on applicable motorcycles. There’s nothing inherently wrong with following that factory-approved approach, but at Route 101, we prefer purpose-specific fluids for each job. Your engine, primary, and transmission operate under different conditions and place different demands on their lubricants. We use dedicated engine oil in the engine, primary fluid in the primary, and transmission fluid in the gearbox because we believe each system deserves a lubricant specifically formulated for the work it is being asked to do.

The Essential Fluids, Parts & Tools

A proper Harley 3-hole oil change means servicing three separate systems, so get everything together before you start.

• Hole #1 - Engine oil specified for your Harley
• Hole #2 Transmission fluid
• Hole #3 Primary fluid
• New oil filter specified for your Harley
• New drain plug / Fill cap O-rings
• Derby cover gasket or seal, when required
• Drain pan / Oil resistant container to dispose of old oil
• Oil filter wrench or socket if socket top filter
• Correct sockets and/or Allen/Torx bits for your model
• Torque wrench

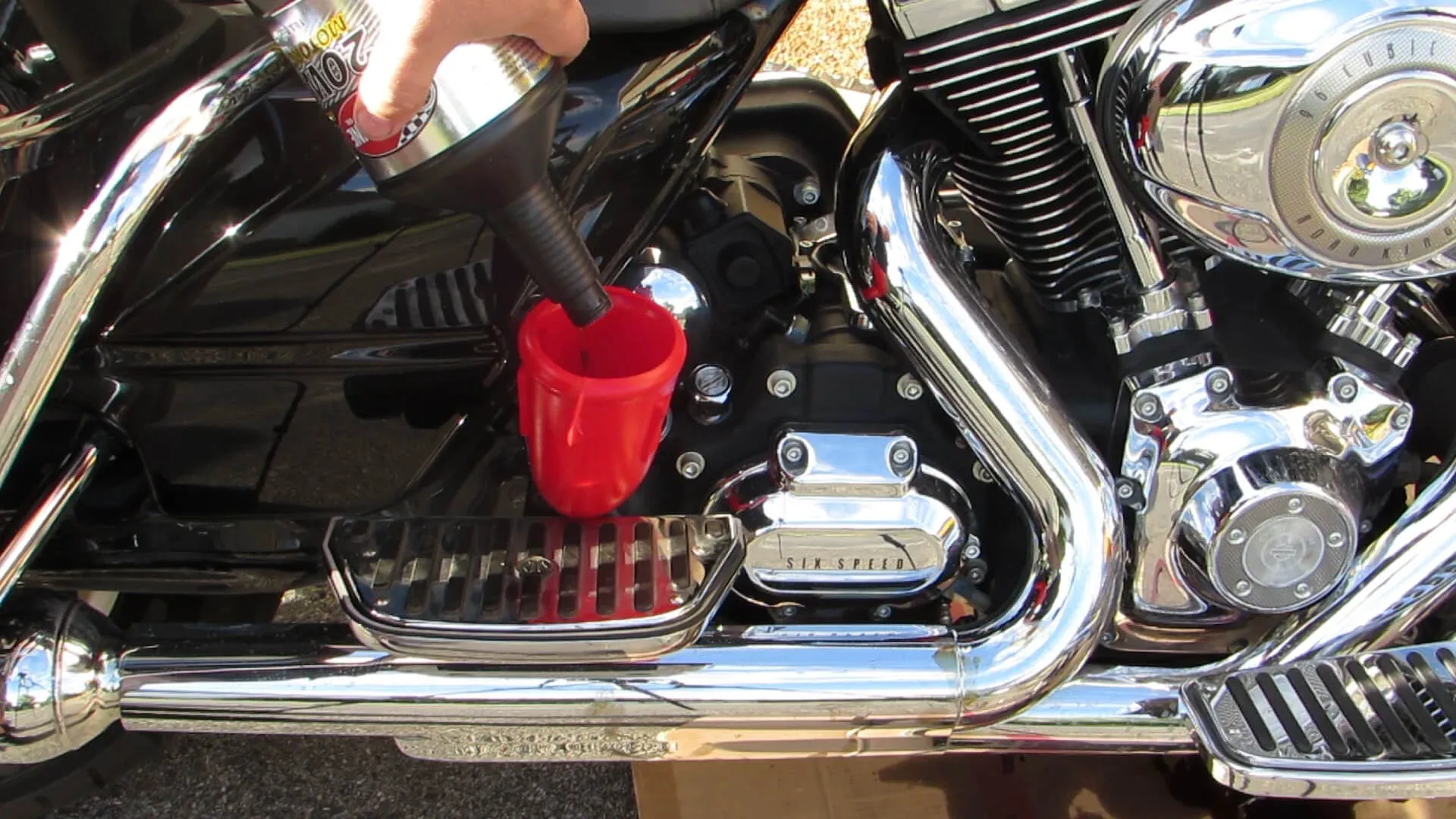

• Funnel / Oil catch diverter (sits under filter during filter removal)
• Rags and gloves

Pro Tip: Don’t rely on a generic fluid quantity or drain-plug torque spec you found online. Harley specifications can vary by model and year. Check the service information for your specific motorcycle before choosing fluids, filling each cavity, or torquing drain plugs.

Ready to Get Dirty? Let’s Service All Three.

Now that you know what each system does and have the right fluids, parts and tools ready, it’s time to get to work. We’ll go through the engine, primary and transmission one at a time, including draining the old fluids, replacing the oil filter and seals where applicable, refilling each system correctly, and checking your work before you fire the bike back up.

Step-by-Step: Harley 3-Hole Oil Change

With the bike secure and the engine warmed enough to help the old fluids flow, you’re ready to service all three systems. Always confirm the drain-plug locations, fluid capacities, fluid specifications and torque values for your specific Harley model and year before beginning.

Vital Pre-Start Pro Tip #1: Remove both the engine-oil and transmission-oil fill caps before draining. This allows air into the systems and helps the old fluids drain more smoothly.

Vital Pre-Start Pro Tip #2: Most Harley drain plugs provide an Allen-head option, but when you have access to the hex, use a 5/8-inch socket. You’ll thank us.

Vital Pre-Start Pro Tip #3: Inspect the magnetic tip of every drain plug as it comes out. A small amount of fine metallic material can accumulate during normal operation, but clean the magnet thoroughly before reinstalling the plug. If you find a significant amount of metal shavings or larger metal pieces, stop. Your Harley may need to be inspected by a professional mechanic before you continue.

Vital Pre-Start Pro Tip #4: Replace all of the O'rings in all three drainplugs, regardless of their condition, and if you have an older bike, or drain plug slow drip, we use a dab of high heat resistant PTFE thread sealer paste.

1. Drain the Engine Oil

Position your drain pan beneath the engine-oil drain plug and remove the plug. Allow the old engine oil to drain completely. Inspect the drain plug, clean it thoroughly and replace its O-ring before reinstalling it.

Note: Leave the engine oil fill cap off for now. We’ll replace it after all three systems have been filled according to Harley specs.

2. Remove the Oil Filter

Position your oil filter oil diverter, or a shop rag under oil filter, then remove the old oil filter and allow any remaining engine oil to drain. Clean the filter-mounting surface and make sure the old filter gasket did not remain stuck to the mounting surface.

3. Drain the Transmission Oil

Move your drain pan beneath the transmission drain plug and remove the plug. Allow the transmission fluid to drain completely. Inspect and clean the magnetic drain plug, check what it collected, replace the O-ring and reinstall the plug using the correct torque specification for your motorcycle.

Note: Leave the transmission oil fill cap off for now. We’ll replace it after all three systems have been filled according to Harley specs.

4. Remove the Derby Cover

Before draining the primary, remove the derby cover to provide access for refilling and inspecting the primary.

Pay attention to the derby-cover screws as you remove them. Keep them organized and return each screw to the same position it came from. There can be subtle differences between the fasteners or their positions that are easy to overlook once everything is sitting on the bench.

If the orientation of the derby cover itself isn’t immediately obvious, mark the top before removing it with a piece of tape, white wax pencil or another removable mark. That eliminates the guesswork when it goes back together.

Pro Tip: Replace the derby-cover gasket or seal while the cover is off. It's a $5-$10 part that gives you piece of mind.

5. Drain the Primary Oil

Position the drain pan beneath the primary drain plug and remove the plug. Allow the old primary fluid to drain completely.

Just as you did with the engine and transmission, inspect and clean the drain plug and its magnetic tip, replace the O-ring and reinstall the plug using the correct torque specification for your Harley.

At this point, all three fluids are drained and the old oil filter is removed. Now we refill in the same order.

6. Install the New Oil Filter and Refill the Engine

Lightly lubricate the gasket on the new oil filter with fresh engine oil, then install the filter according to the filter manufacturer’s instructions.

Add the correct type and initial quantity of engine oil specified for your Harley. Don’t automatically dump in the motorcycle’s full stated capacity. The final oil level should be checked using the procedure specified for your particular model.

7. Refill the Transmission

Add the correct transmission fluid and quantity through the transmission fill point. Verify the level using the procedure specified for your motorcycle, then reinstall the fill cap or dipstick.

8. Refill the Primary and Reinstall the Derby Cover

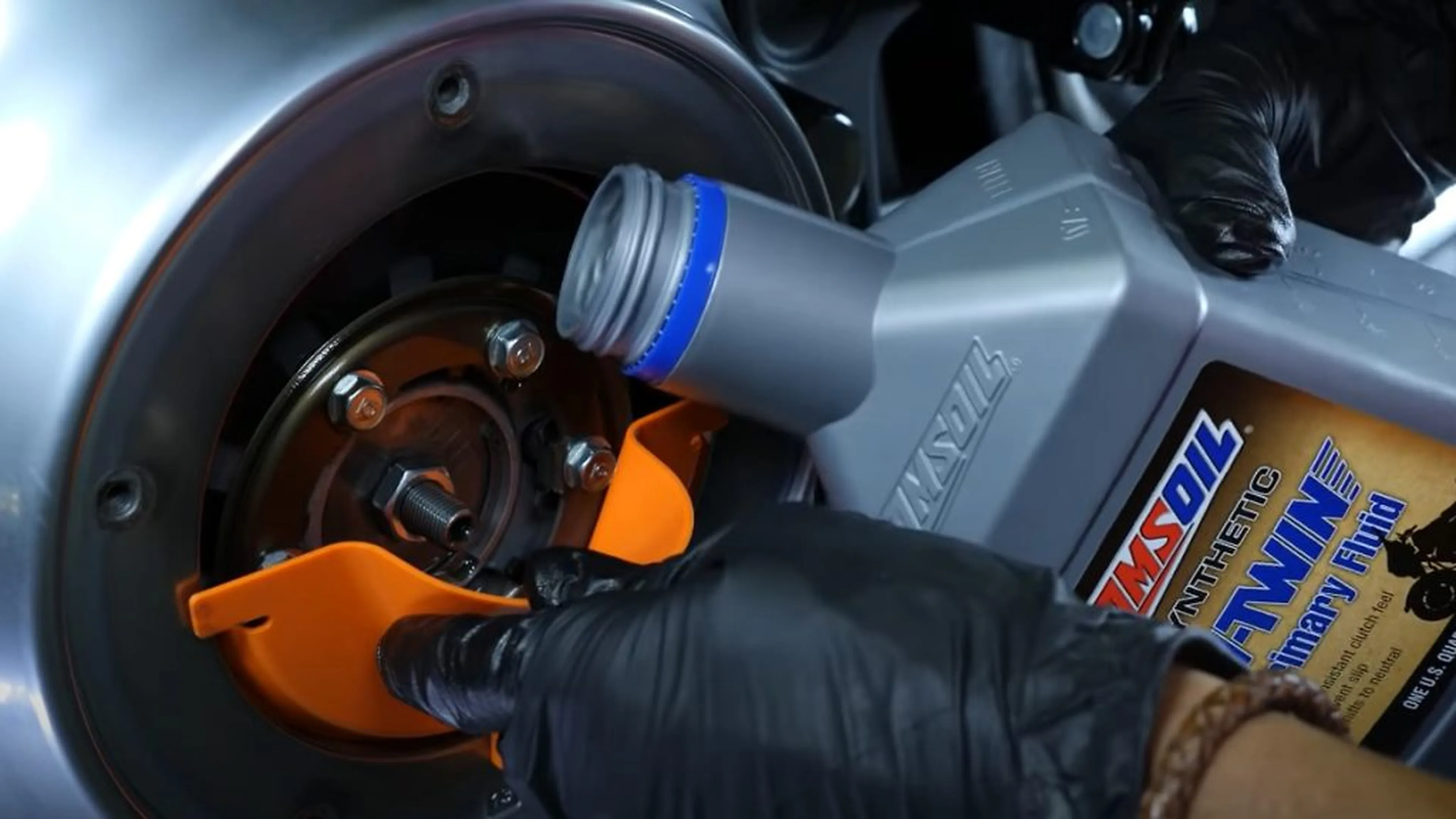

Add the specified quantity of primary fluid through the derby-cover opening, following the correct fill-level procedure for your particular Harley.

Reinstall the derby cover using the gasket or seal you inspected earlier. Return each screw to its original location and tighten the screws in the proper sequence, gradually and evenly. Torque them to the specification for your model.

Pro Tip: Derby cover screws are pron to strip at the heads, and the screws themselves. DO NOT OVER TORQUE!

9. Start It, Inspect It, Check It Again

Before starting the motorcycle, do one deliberate final walk-around. Make sure all three drain plugs are installed, the oil filter is secure, the derby cover is installed, and every fill cap or dipstick is back in place.

Pro Tip: Before starting the motor, touch each drain plug... #1 Engine, then #2 Transmission, then #3 Primary... did you tighten and torque all three? Don't remember? Check them again!

Start the engine and let it run while checking carefully for leaks. Shut it down, allow the fluids to settle according to the procedure for your motorcycle, then perform the final fluid-level checks and correct them if necessary.

One Last Garage Rule: Never guess at a drain plug, fluid capacity, fill level or torque value. Harley-Davidson configurations vary across models and generations. When in doubt, stop and verify before you wrench.

Real-World Tips From the Route 101 Garage Shop Floor

Pay Attention to What’s on the Drain Plugs
A light coating of very fine metallic material on a magnetic drain plug isn’t necessarily cause for alarm. What you don’t want to find are large flakes, chips, chunks or an unusual amount of metal. If something doesn’t look right, don’t just clean the magnet, refill the bike and forget about it. Stop and figure out where it may be coming from.

Look at the Fluids You Drain
Don’t dump the old fluids without taking a look at them. Pay attention to color, consistency, contamination, unusual metallic material and anything else that looks out of place. What comes out can sometimes give you an early warning that something deserves a closer inspection.

Replace the O-Rings, Don’t Just Reuse Them Forever
Drain-plug O-rings are cheap. Cleaning oil off your garage floor or repairing damaged threads because you kept tightening a plug trying to stop a seep isn’t. Inspect them every time and replace them as part of routine service.

Don’t Overtighten Drain Plugs
More torque does not mean a better seal. Harley cases and drain-plug threads are not something you want to learn this lesson on. Use the correct torque specification for your motorcycle and let the O-ring do its job.

Watch the Primary Fluid Level
Too much or too little primary fluid can create problems. Use the correct quantity and fill-level procedure for your specific Harley rather than assuming more fluid means more protection.

Pay Attention to How the Bike Feels Afterward
After the service, notice how the motorcycle shifts, how the clutch engages and whether anything feels or sounds different. You know your bike better than anyone. If something changed immediately after you worked on it, don’t ignore it.

And Always Check for Leaks
Look underneath the motorcycle after the first ride and again after it has been parked. Check the drain plugs, oil filter, derby cover and fill points. Five minutes with a flashlight can catch a small problem before it becomes a big one.
